Automatic Drawing of Stress Trajectories in Plane Systems
O. J. B. Almeida Pereira and J. P. B. Moitinho de Almeida
Abstract

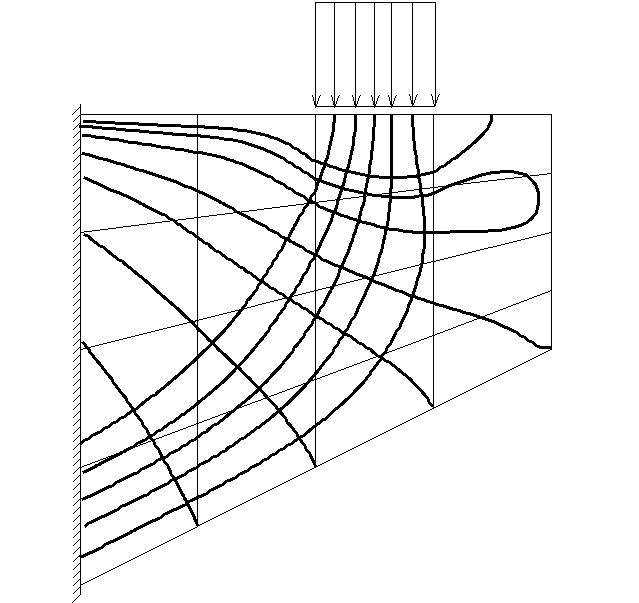

An approximate method for plotting the principal stress trajectories in
plane systems, using a computer and knowing the stress tensor in every
point of a finite element mesh, is described. This method can be used to
plot any second-order tensor field in a plane system.
